Hood v1.0
| Model | Hood v1.0 |
|---|---|
| Size | 660*760*1375 | 1775 unfolded (mm) |
| Power | 9kW |
| Voltage | 220v/380v (customisable) |
| Washtime | 30 – 60s/Basket (adjustable) |
| Material | 304 Stainless Steel |
| Capacity | 1000 dishes/hr |
| Consumption | 1.5l/basket |
| Water Pump | Italy brand double water pump |
| Temperature | 80-95 degrees Celsius |
Undercounter v1.0
| Model | Undercounter v1.0 |
|---|---|
| Size | 620*616*820mm |
| Power | 7.5kW |
| Voltage | 220v |
| Washtime | 30 – 60s/Basket (adjustable) |
| Material | 304 Stainless Steel |
| Capacity | 500 pc/hr |
| Consumption | 0.9l/basket |
| Water Pump | China brand double water pump |
| Temperature | 80-95 degrees Celsius |

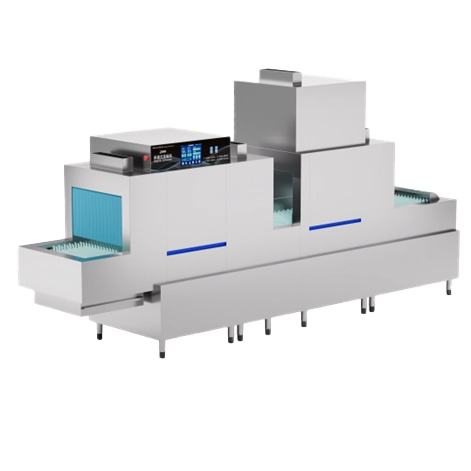

Conveyor Belt v1.0
| Model | Conveyor Belt v1.0 |
|---|---|
| Size | 4100*900*2060mm |
| Power | 63kW |
| Voltage | 380v (50hz/4phase) |
| Washtime | 2.5 meter/min |
| Material | 304 Stainless Steel |
| Capacity | 3500 dishes/hr |
| Consumption | 420L/hr |
| Drying Power | 14.3kw |
| Temperature | 82-95 degrees Celsius |

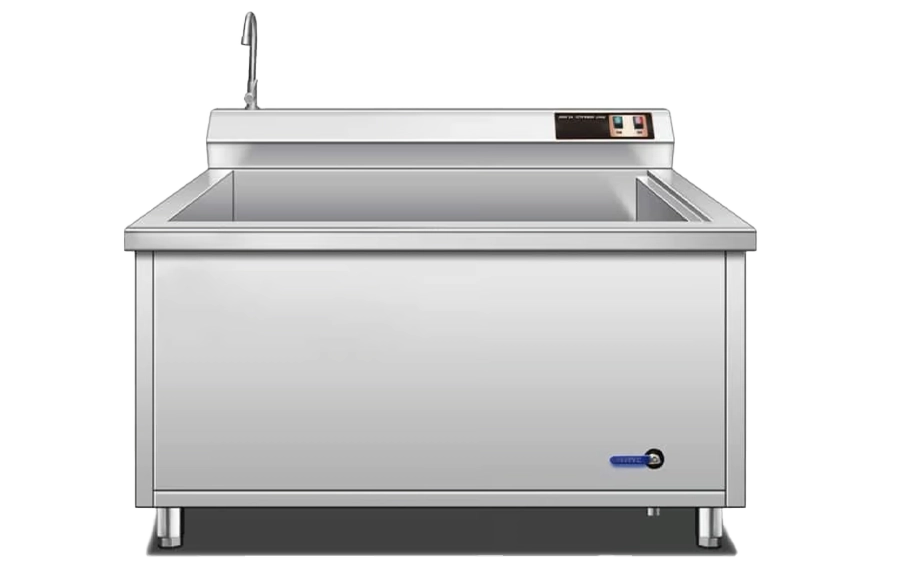

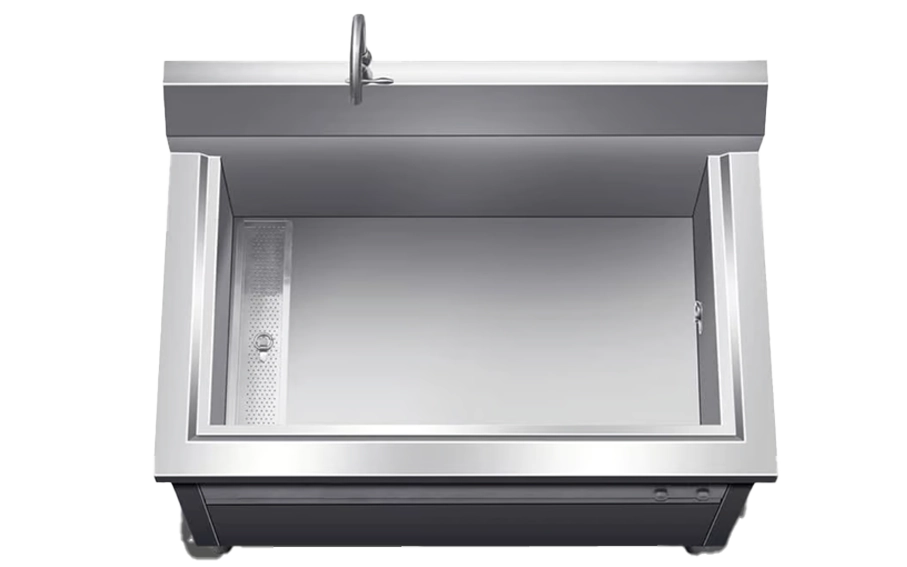

Ultrasonic Dishwasher
Our YC Ultrasonic Dishwasher meets all the requirements of food contact safety. Made out of 1.2mm thick all around with oscillator at a thicker and more durable 2.5mm.
- Thickened Stainless Steel
- Thickened sound insulation cotton to reduce noise
- Anti-dryburn technology to ensure safe continuous operation
- One click operation, no operation skill needed.
- Stainless steel one-piece stamped sink
- Ultra fine 40KHZ high-frequency oscillator, harmless to humans
| Model | YC-UltraS-A1 |
|---|---|
| Size | 2000*700*950mm |
| Power | 6kW |
| Voltage | 220v50hz |
| Oscillators | 52 units |
| Oscillator Power | 3kW |
| Heating Tube | 3kW |
| Oscillator Frequency | 40KHZ/60W |
| Material | 304 Stainless |
ON-GOING SUPPORT.
YC Kitchen ensures our products meet regulatory requirement, have practical value and are quality products but our biggest benefit lies in our support. We have a in house team of technicians to provide support, maintenance, training and repairs to our equipment all over Singapore. We want to promise reliability and that comes from our support.
